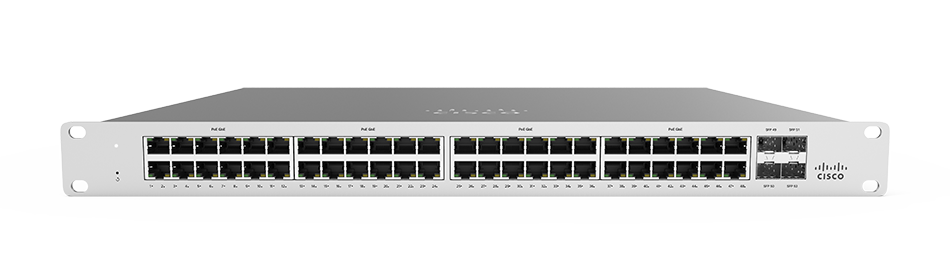

Cisco Meraki MS120-48LP
Cloud Managed Switching for the Small Branch

Overview:

Cloud-Managed Compact Switches

Cisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks.

Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Industry-Leading Cloud Management

Cloud management has a number of benefits that make it easier to build networks large and small:

• True zero-touch device provisioning
• Virtual Stacking: manage up to thousands of ports from a single pane of glass
• Application-layer visibility with automatic operating system, client, and hostname fingerprinting
• Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
• Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
• Role-based administration and automatic, scheduled firmware upgrades over the web
• Regular feature updates and enhancements delivered on demand from the Meraki cloud

Product Highlights

• Gigabit Access switching with 24- and 48- port models and PoE+
• 4 x 1G SFP uplink interfaces on all models
• Non-blocking switch with up to 104 Gbps bandwidth support
• Fanless design on select models
• Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices
• 8 dedicated QoS queues for converged voice, video, and data applications
• Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
• Integrated mounting brackets for rack mounting

Features:

Branch & Campus Access

• PoE and PoE+ models available for device level powering
• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
• Voice VLAN support for simplified VoIP deployments
• CDP/LLDP with detailed neighbor discovery and visibility
• Port Mirroring support for monitoring network traffic at line rate
• IGMP Snooping to optimize network performance for multicast applications
• Link Aggregation Control Protocol (LACP) for high-capacity trunking

---

Network Security

• IEEE 802.1X, MAB, and Hybrid authentication support for wired access control with RADIUS server monitoring
• Port security and MAC whitelisting
• Change of Authorization (CoA) and RADIUS accounting support
• DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
• Rapid Spanning Tree, BPDU Guard, Root Guard, and other safeguards to help prevent misconfigurations and reduce convergence time
• Per-port VLAN configuration
• Multiple administrative roles with sophisticated security policy management

---

Network Troubleshooting & Automation

• Virtual Stacking lets administrators configure thousands of ports across a network in one dashboard action without having to physically connect stack members
• Configuration templates for rapid, zero-touch provisioning and auditing of all sites
• Network Topology for automatic and interactive network mapping
• Remote cable testing, packet capture, and client discovery
• Automatic and scheduled firmware upgrades for the complete network

---

Converged Voice, Video and Data Environments

The Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich qualityof-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

PoE models provide power for VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

---

Application Layer Visibility

Meraki is the only switch to include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, Macs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

---

Unified Software Architecture

Meraki switches run the same operating system used by all of Meraki's products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, MS120 switches automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-todate with bug fixes, security updates, and new features.

Technical Specifications:

Cisco Meraki MS120-48 Specifications
Interfaces
48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS120, available on all ports (maximum of 30W per port for PoE+) 4 × SFP 1 Gigabit Ethernet interfaces for uplink Auto negotiation and crossover detection
Management
Managed via the web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no staging needed) Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration Detailed historical per-port and per-client usage statistics DHCP, client, and hostname fingerprinting SNMP and Syslog support for integration with other network management solutions Automatic firmware upgrades with scheduling control
Remote diagnostics
Email, SMS and mobile push notification alerts1 Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search Ethernet Switching Capabilities 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping 802.1Q VLAN and trunking support for up to 4,094 VLANs 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate.
Port mirroring
IGMP snooping for multicast filtering MAC forwarding entries: 16K on 24-port models, 32K on 48-port models
Security
Integrated two-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control SSO, Corporate-wide password policy enforcement IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing MAC-based RADIUS authentication (MAB) Port security: Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking STP Enhancements include BPDU guard, Root guard IPv4 ACLs
Power over Ethernet
802.3af (PoE) 15.4W per port and 802.3at (PoE+) 30W per port Maximum PoE output: 370 W PoE available on all ports simultaneously
Performance
Switching capacity: 104Gbps Forwarding rate: 77.38 mpps Jumbo frame support (9578 byte Ethernet frame) Flow control
Power
Power input: 100 - 240 VAC, 47-63 Hz Power consumption: 15 - 882W
Mounting
1U Rack-mountable with included rack mount hardware 2-post front mounting options available Desktop-mountable with included feet
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C), 45°C Humidity: 5 to 95% non-condensing MS120-24, MS120-48 feature fanless operation Regulatory CSA-US (US, Canada) FCC (USA) IC (Canada) CE (Europe) RCM (Australia/New Zealand) RoHS
Warranty
Full lifetime hardware warranty with next-day advanced replacement included
MTBF at 25°C
MS120-48 1,154,812 MS120-48LP 731,534
Physical dimensions (H×W×D)
MS120-48: 1.72” × 17.32” × 9.84” (4.40 × 44 × 25cm) MS120-48LP: 1.72” × 17.32” × 13.38” (4.40 × 44 × 34cm)
Physical Weight
MS120-48: 8.78 lb (3.98 kg) MS120-48LP: 9.63 lb (4.37 kg) MS120-48-FP: 9.63 lb (4.37 kg)
