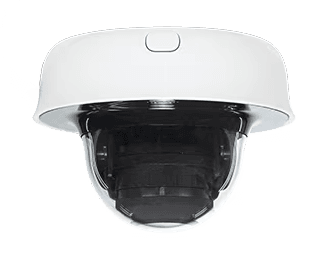

Cisco Meraki MV13
Indoor fixed-lens mini dome camera with 114° field of view and night vision up to 15 m

Overview:

Compact design perfect for indoor spaces like entryways, hallways, and general purpose areas.

The Meraki MV13 offers 8MP image quality and combines physical security and advanced analytics in a powerful yet compact fixed-lens mini dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements, MV13 enables faster, easier deployments and greater scalability.

Security in high definition

The ultra-high-performance MV13 camera supports up to 4K resolution for high-definition video and with IR illumination, delivering the level of detail needed to stay on top of what matters the most.

Compact and easy to install, MV13 camera boasts a new universal mounting place compatible with various mounting accessories, delivering the right viewing angle wherever they are placed. MV13 cameras are ideal for monitoring entrances, exits, and the general perimeter from walls, ceilings, or corner-mount locations.

Using machine-learning-based computer vision, MV13 cameras can perform real-time object detection, classification, and tracking of people and vehicles, as well as attribute detection and search to increase safety and provide valuable insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security.

Product Highlights

Features:

Safe, smart, and secure

---

Cutting edge architecture with streamlined managment

Meraki MV architecture

Meraki’s expertise in distributed computing brings simplicity to security camera deployments. With cloudaugmented edge storage, MV smart cameras provide groundbreaking ease of installation, configuration, and operation. Eliminating the network video recorder (NVR) reduces equipment CAPEX and the simplified architecture minimizes lifetime OPEX costs.

Each MV smart camera comes with integrated, ultra-reliable, industrial-grade storage. This cutting-edge technology allows the system to efficiently scale to any size, with storage expanding with the addition of each camera. Plus, as video is stored locally, administrators can rest easy knowing that even if the network connection cuts out, the cameras will continue to record footage.

---

Integrated wireless for flexible deployments

As the primary storage is on the camera itself, very little bandwidth is used unless video is being watched. This unique architecture makes it possible to deploy MV smart cameras wirelessly, with minimal impact to the network. All MVs have wireless functionality built in, meaning they can be deployed without having to run new cabling for connectivity. The option for wireless deployments offers organizations an easy upgrade path for analog cameras without the need for recabling, and allows greater flexibility for remote or temporary sites.

---

---

---

Secure and always up-to-date

Centralized cloud management offers one of the most secure platforms available for camera operation. Built with Cisco Trust Anchor Modules, secure boot, firmware image signing, and runtime defenses, MV smart cameras are protected and tamper-proof. Access to the camera is encrypted with a public key infrastructure (PKI) that includes individual camera certificates. Local video is also encrypted by default and adds a final layer of security. All security measures are on by default, require no user configuration, and cannot be turned off.

Software updates are managed automatically for the delivery of new features and to enable rapid security updates. Scheduled maintenance windows ensure the MV family continues to address users’ needs with the delivery of new features as part of the cloud service.

Specifications:

Category	Specifications
Camera	1/2.8” 8.41MP (3854x2176) progressive CMOS backlit image sensor 256 GB high-endurance solid-state storage 3.3 mm focal length f/2.0 aperture Field of view: Diagonal: 119.7, Horizontal:101.3, Vertical: 54.4 1/30 second to 1/32,000 second shutter speed Auto day/night capable Built-in IR illuminators, effective up to 15m (49 ft)
Video	4K video recording (3840x2160) with H.264 Smart Codec encoding, up to 8 fps 4MP (2560 x 1440) with H.264 Smart Codec encoding, up to 15 fps 1080p (1920x1080) with H.264 Smart Codec encoding, up to 24fps Cloud-augmented edge storage (locally stored video, metadata in the cloud) Optimized retention settings (scheduling, motion-based) for variable retention Direct live streaming with no client software (native browser playback)* Stream video anywhere with automatic cloud proxy Audio recording supported with three (3) built-in microphones
DORI Specifications (Maximum Resolution)	Detect (25 ppm/ 8 ppf) 86.9 m / 285.1 ft Observe (63 ppm/ 19 ppf) 34.5 m / 113.1 ft Recognize (125 ppm/ 38 ppf) 17.4 m / 57.1 ft Identify (250 ppm/ 76 ppf) 8.7 m / 28.5 ft
Networking and wireless	1x 10/100/1000BASE-T Ethernet (RJ45) DSCP traffic marking Supported frequency bands (country-specific restrictions apply): 2.4 GHz 802.11b/g/n radio 2.412 - 2.484 GHz 5 GHz 802.11a/n/ac radio 5.150 - 5.250 GHz (UNII-1) 5.250 - 5.350 GHz (UNII-2) 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) 5.725 - 5.825 GHz (UNII-3) 1x1 with one spatial stream 20, 40, and 80 MHz channels (802.11ac) Up to 256 QAM on 5 GHz band Integrated omnidirectional antennas (6.3 dBi gain at 5 GHz) MT Gateway Support for all MT sensors
Power	Power consumption 12.95W maximum via 802.3af PoE
Environment	Temperature: 0°C to 40°C (32°F - 104°F)
Data and network security	Full disk encryption (AES 256-bit) Automatically purchased and provisioned TLS certificates (publicly signed) Management encryption and two-factor authentication Wireless security: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption
Physical characteristics	Dimension: 120 mm x 83.5 mm (diameter x height) Product Weight: 430 grams Fixed lens Ethernet Connector with RJ45 Interface Multicolor, multifunction status LED External microphone switch Reset button
Warranty	Five-year hardware warranty with advanced replacement
Hardware	MV13-HW: Fixed lens outdoor mini-dome camera with 256GB storage
In the box	MV camera hardware Quick Install Guide Small mounting plate Allen Wrench

MV Sense:

For Meraki Smart Cameras

With an integrated mobile-grade processor on each MV device*, Meraki smart cameras have revolutionized the security camera and video analytics world. Servers and complex software are no longer requirements to benefit from the wealth of analytics insights that can be gleaned through computer vision and machine learning technologies. Processing video data on the camera, and not in the cloud, also reduces the time required to produce these insights.

MV Sense is the perfect companion to the Meraki smart camera line*, allowing users to further utilize the MV machine-learningbased computer vision outputs via API to create custom business solutions. From an individual camera all the way up to a global fleet, MV Sense supplies organizations and developers with processed, high-value data and insights with no additional infrastructure requirements.

The MV Sense API allows developers to access three types of rich data insights (Figure 1):

• Historical aggregate: How many people were in a given area at a specified time, and where exactly were they in the frame?
• Current snapshot: How many people are in a given area right now, and where exactly are they in the frame?
• Real-time feed: A stream of the number of people and their exact location in a frame, pushed out in sub-second intervals

Additionally, the ability to define zones as specific areas of interest coupled with these three types of endpoints gives users selective granularity and customizability: two shopping queues in a single camera frame can be defined and analyzed as such with MV Sense.

From streamlining an operation, to creating a richer customer experience, to making a safe school even safer, and everything in between, MV Sense allows users to utilize their security camera deployment for more than just security. Meraki smart cameras coupled with MV Sense unleash the power of cameras as sensors.

* Second generation and later (indicated by a model number that ends in -2)

10 TRIAL MV SENSE LICENSES INCLUDED IN EVERY MV ORGANIZATION

Documentation:

Download the Cisco Meraki MV13 Indoor Security Cameras Datasheet (PDF).

Download the Cisco Meraki MV Cloud Managed Security Cameras Datasheet (PDF).
