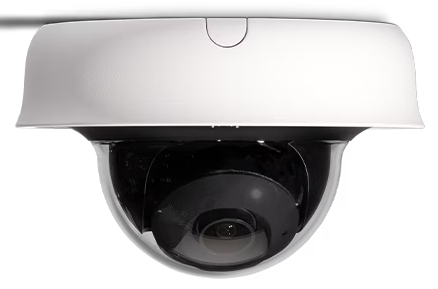

Cisco Meraki MV73M
Varifocal dome camera rated for harsh or outdoor environments with up to 60 days of retention

Overview:

512GB of onboard storage and 4x optical zoom join together to deliver stunning 4K video and insights almost anywhere

The Meraki MV73, part of the third generation of MV smart cameras, combines physical security and advanced analytics in a powerful varifocal lens dome form factor. With an edge architecture that minimizes physical infrastructure and software requirements, MV73 enables faster, easier deployments and greater scalability.

Security in high definition

The ultra-high-performance MV73 series camera supports up to 4K resolution for high-definition video, delivering the level of detail needed to stay on top of what matters. With IK10+ and IP67 ratings, plus IR illumination, the MV73 extends visibility and safety to outdoor and demanding environments.

Compact and easy to install, MV73 series cameras are compatible with a variety of mounting accessories, delivering the right viewing angle wherever they are placed. MV73 series cameras are ideal for monitoring entrances and exits, as well as the general perimeter, from walls, ceilings, or even corner-mount locations.

Using machine-learning-based computer vision, MV73 cameras can perform real-time object detection, classification, and tracking of people and vehicles to increase safety and provide useful insights into activity. These smart cameras deliver powerful business intelligence without compromising physical security.

Product Highlights

Features:

Safe, smart, and secure

---

Cutting edge architecture with streamlined managment

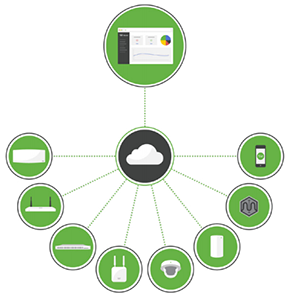

Meraki MV architecture

Meraki brings simplicity to physical security deployments with expertise in distributed computing. With cloud-augmented edge storage, MV smart cameras provide groundbreaking ease of installation, configuration, and operation. Eliminating the NVR reduces equipment CapEx and the simplified architecture minimizes lifetime OpEx costs.

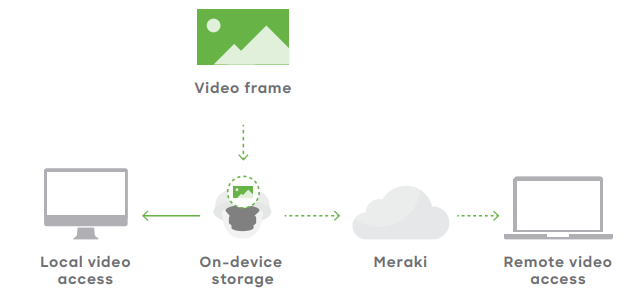

Each MV smart camera comes with integrated, ultra-reliable, industrial-grade storage. This cutting-edge technology allows the system to efficiently scale to any size, with storage expanding with the addition of each camera. Plus, as video is stored locally, administrators can rest easy knowing that even if the network connection cuts out, the cameras will continue to record footage.

---

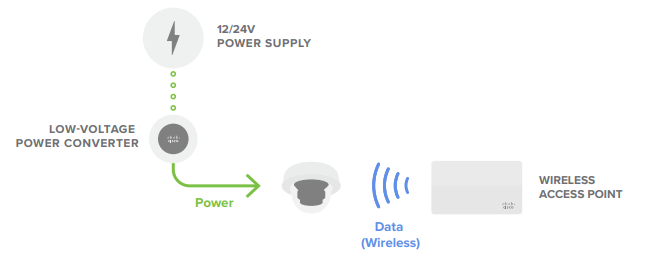

Integrated wireless for flexible deployments

As the primary storage is on the camera itself, very little bandwidth is used unless video is being watched. This unique architecture makes it possible to wirelessly deploy MV smart cameras with minimal impact to the network. All MVs have wireless functionality built in, meaning they can be deployed without having to run new cabling for connectivity. The option for wireless deployments offers organizations an easy upgrade path for analog cameras without the need for recabling and allows greater flexibility for remote or temporary sites.

---

---

---

Secure and always up-to-date

Centralized cloud management offers one of the most secure platforms available for camera operation. Built with Cisco Trust Anchor modules, secure boot, firmware image signing, and runtime defenses, MV smart cameras are protected and tamper-proof. Access to the camera is encrypted with a public key infrastructure (PKI) that includes individual camera certificates. Local video is also encrypted by default and adds a final layer of security. All security measures are on by default, require no user configuration, and cannot be turned off.

Software updates are managed automatically for the delivery of new features and to enable rapid security updates. Scheduled maintenance windows ensure the MV family continues to address users’ needs with the delivery of new features as part of the cloud service.

Specifications:

Category	Specifications
Camera	1/2.8″ 8.41MP (3854x2176) progressive CMOS image sensor 512 GB high-endurance solid-state storage (MV73M) 1 TB high-endurance solid-state storage (MV73X) 3.0 - 9.0 mm focal length f/1.6-2.9 aperture Field of view: horizontal 36 - 112° 1/30 second to 1/32,000 second shutter speed Auto day/night capable Built-in IR illuminators, effective up to 30 m (98 ft) Heating elements
Video	4K (3840x2160) with H.264 Smart Codec, up to 15fps 4MP (2560 x 1440) with H.264 Smart Codec, up to 24fps 1080p (1920x1080) with H.264 Smart Codec, up to 24fps High dynamic range (HDR) Cloud augmented edge storage (locally stored video, metadata in the cloud) Optimized retention settings (scheduling, motion-based) for variable retention Direct live streaming with no client software (native browser playback)* Stream video anywhere with automatic cloud proxy Audio recording supported with four (4) built-in microphones
DORI Specifications (Maximum Resolution)	Maximum FoV [Wide] Detect (25 ppm/ 8 ppf) 63.8 m / 209.3 ft Observe (63 ppm/ 19 ppf) 25.3 m / 83 ft Recognize (125 ppm/ 38 ppf) 12.8 m / 41.9 ft Identify (250 ppm/ 76 ppf) 6.4 m / 21 ft Minimum FoV [Telescopic] Detect (25 ppm/ 8 ppf) 244.5 m / 802.2 ft Observe (63 ppm/ 19 ppf) 97 m / 318.2 ft Recognize (125 ppm/ 38 ppf) 48.9 m / 160.4 ft Identify (250 ppm/ 76 ppf) 24.4 m / 80 ft
Networking and wireless	1x 10/100/1000BASE-T Ethernet (RJ45) DSCP traffic marking Supported frequency bands (country-specific restrictions apply): 2.4 GHz 802.11b/g/n radio 2.412 - 2.484 GHz 5 GHz 802.11a/n/ac radio 5.150 - 5.250 GHz (UNII-1) 5.250 - 5.350 GHz (UNII-2) 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e) 5.725 - 5.825 GHz (UNII-3) 1x1 with one spatial stream 20, 40, and 80 MHz channels (802.11ac) Up to 256 QAM on 5 GHz band Integrated omnidirectional antennas
Power	Power consumption 25.5W maximum via 802.3at PoE 12VDC/24VAC Screw Terminal power input
Environment	Temperature: -40°C to 50°C (-40°F to 122°F)**
Data and network security	Full disk encryption (AES 256-bit) Automatically purchased and provisioned TLS certificates (publicly signed) Management encryption and two-factor authentication Wireless security: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS TKIP and AES encryption
Physical characteristics	Dimension: 166.39 mm x 103 mm (diameter x height) Weight: 1480 grams Varifocal lens Female RJ45 Ethernet connector Multicolor, multifunction status LED External microphone switch Reset button
Warranty	Five-year hardware warranty with advanced replacement
Hardware	MV73M-HW: Varifocal lens outdoor dome camera with 512GB storage
In the box	Quick-start and installation guide MV camera hardware Wall-mounting kit

Documentation:

Download the Cisco Meraki MV73 Series Outdoor Smart Cameras Datasheet (PDF).

Download the Cisco Meraki MV Cloud Managed Smart Cameras Datasheet (PDF).
