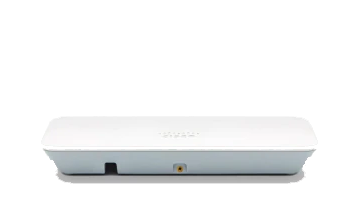

Reliable and secure WiFi for business/guests needs, fast and easy setup, enhanced features for small businesses, and visibility and control at your fingertips. Simple management from anywhere using the Meraki Go mobile app or web portal.
Specifications- Meraki Go Indoor WiFi Access Point- GR10
Radios
2.4 GHz 802.11b/g/n client access radio
5 GHz 802.11a/n/ac client access radio
Supported frequency bands (country-specific restrictions apply):
2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHZ (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725 -5.825 GHz (UNII-3)
Antenna
Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
Power
Power over Ethernet: 37 - 57 V (802.3af compatible)
Alternative 12 V DC input
Power consumption: 11W max (802.3af)
Power over Ethernet injector sold separately
Physical Dimensions
7.95″ x 4.8″ x 1″ (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
LED Indicators
2 Ethernet status
1 power/booting/firmware upgrade status
In the Box
GR10-HW: Meraki Go Indoor Access Point
Wall mount and screw kit
Quick start guide
PSU and ethernet cable
Note: Meraki Go subscription required
802.11ac and 802.11n Capabilities
2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) & Beamforming
20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
Up to 256 QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
Interfaces
1x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector (5.5 mm x 2.5 mm, center positive)
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Mobility
PMK and OKC for fast Layer 2 roaming
Compliance
RoHS
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

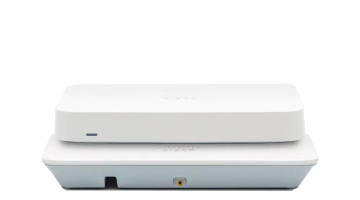

Reliable and secure WiFi for business/guests needs, fast and easy setup, and enhanced features for small businesses. The Small Network Kit includes the router/firewall that comes with up to 4 wired connections, automatic updates that keep your business secure, control over usage limits, and peace of mind.
Specifications-
Meraki Go Indoor WiFi Access Point - GR10
Radios
2.4 GHz 802.11b/g/n client access radio
5 GHz 802.11a/n/ac client access radio
Supported frequency bands (country-specific restrictions apply):
2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHZ (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725 -5.825 GHz (UNII-3)
Antenna
Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
Power
Power over Ethernet: 37 - 57 V (802.3af compatible)
Alternative 12 V DC input
Power consumption: 11W max (802.3af)
Power over Ethernet injector sold separately
Physical Dimensions
7.95″ x 4.8″ x 1″ (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
LED Indicators
2 Ethernet status
1 power/booting/firmware upgrade status
In the Box
GR10-HW: Meraki Go Indoor Access Point
Wall mount and screw kit
Quick start guide
PSU and ethernet cable
Note: Meraki Go subscription required
802.11ac and 802.11n Capabilities
2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) & Beamforming
20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
Up to 256 QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
Interfaces
1x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector (5.5 mm x 2.5 mm, center positive)
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Mobility
PMK and OKC for fast Layer 2 roaming
Compliance
RoHS
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Warranty
1 year hardware warranty
Meraki Go Security Gateway - GX20
Performance
Firewall Throughput - 250 Mbp/s
Recommended for 50 clients of fewer
Network and Security Services
Stateful firewall
Port Forwarding
DHCP services
DNS based security powered by Cisco Umbrella (additional subscription required)
Power
50W (54V / 0.92 A) Power Supply Included
Physical Dimensions
6.83” x 4.41" x 1.0.4" (173.4mm x 112mm x 26.3mm), not including deskmount feet or mount plate
In the Box
GX20-HW: Meraki Go Security Gateway
Wall mount and screw kit
Quick start guide
PSU and ethernet cable
Interfaces
WAN Interface: 1x 10/100/1000 BASE-T Ethernet (RJ45)
LAN interfaces: 4x 10/100/1000 BASE-T Ethernet (RJ45)
PoE: 1x 802.3af enabled port (15.5W)
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)

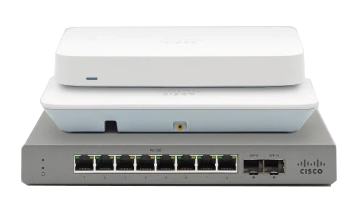

Reliable and secure WiFi for business/guests needs, fast and easy setup, and enhanced features for small businesses. The Complete Kit includes the router/firewall that comes with automatic security updates, control over usage limits, and peace of mind.
With the included Meraki Go 8-port Switch, you get WiFi and wired connectivity and control over business devices, with visibility into switch port usage, remote troubleshooting tools, and bulk port configuration, all from the Meraki Go mobile app and web portal.
Specifications-
Meraki Go Indoor WiFi Access Point- GR10
Radios
2.4 GHz 802.11b/g/n client access radio
5 GHz 802.11a/n/ac client access radio
Supported frequency bands (country-specific restrictions apply):
2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHZ (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725 -5.825 GHz (UNII-3)
Antenna
Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
Power
Power over Ethernet: 37 - 57 V (802.3af compatible)
Alternative 12 V DC input
Power consumption: 11W max (802.3af)
Power over Ethernet injector sold separately
Physical Dimensions
7.95″ x 4.8″ x 1″ (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
LED Indicators
2 Ethernet status
1 power/booting/firmware upgrade status
In the Box
GR10-HW: Meraki Go Indoor Access Point
Wall mount and screw kit
Quick start guide
PSU and ethernet cable
Note: Meraki Go subscription required
802.11ac and 802.11n Capabilities
2 x 2 multiple input, multiple output (MIMO) with two spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) & Beamforming
20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
Up to 256 QAM on both 2.4 GHz and 5 GHz bands
Packet aggregation
Interfaces
1x 10/100/1000 BASE-T Ethernet (RJ45)
1x DC power connector (5.5 mm x 2.5 mm, center positive)
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Mobility
PMK and OKC for fast Layer 2 roaming
Compliance
RoHS
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Warranty
1 year hardware warranty
Meraki Go Security Gateway - GX20
Performance
Firewall Throughput - 250 Mbp/s
Recommended for 50 clients of fewer
Network and Security Services
Stateful firewall
Port Forwarding
DHCP services
DNS based security powered by Cisco Umbrella (additional subscription required)
Power
50W (54V / 0.92 A) Power Supply Included
Physical Dimensions
6.83” x 4.41" x 1.0.4" (173.4mm x 112mm x 26.3mm), not including deskmount feet or mount plate
In the Box
GX20-HW: Meraki Go Security Gateway
Wall mount and screw kit
Quick start guide
PSU and ethernet cable
Interfaces
WAN Interface: 1x 10/100/1000 BASE-T Ethernet (RJ45)
LAN interfaces: 4x 10/100/1000 BASE-T Ethernet (RJ45)
PoE: 1x 802.3af enabled port (15.5W)
Environment
Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 5 to 95% non-condensing
Kensington lock hard point
LED Indicators
2 Ethernet status
1 power/booting/firmware upgrade status
Warranty
1 year hardware warranty
Meraki Go Network Switches - GS110-8/24/48
Ethernet Switching Capabilities
802.1p Quality of Service, 8 queues
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
MAC forwarding entries: 16K on 24-port models, 32K on 48-port models
Interface
GS110-8/P:
8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
2 x 1G SFP uplink
GS110-24/P:
24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
2x 1G SFP uplink
RJ45 Management port
GS110-48/P:
48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
2 x 1G SFP uplink
RJ45 Management port
Power
GS110-8/P
Power input: 100 - 240 VAC, 47-63 Hz
Power consumption: 5 - 161W
External power supply
GS110-24/48/P
Power input: 100 - 240 VAC, 47-63 Hz
Power consumption: 8 - 908W
Physical Dimensions
GS110-8: 1.1 x 8.74 x 5.91” (2.8 x 22.2 x 15cm)
GS110-8P: 1.1 x 8.74 x 5.91″ (2.8 x 22.2 x 15cm)
GS110-24: 1.73 x 17.32 x 9.84″ (4.40 x 44 x 25cm)
GS110-24P: 1.73 x 17.32 x 9.84″ (4.40 x 44 x 25cm)
GS110-48: 1.73 x 17.32 x 9.84″ (4.40 x 44 x 25cm)
GS110-48P: 1.73″ x 17.32″ x 13.39″ (4.40 x 44 x 34cm)
LED Indicators
Ethernet status per port
1 power/booting/firmware upgrade status
In the Box
GS110-HW: Meraki Go Network Switch
Mount and screw kit
Quick start guide
Power Cable / Power Supply
Switching Capacity
GS110-8/P:
20 Gbp/s
GS110-24/P:
56 Gbp/s
GS110-48/P:
104 Gbp/s
Mounting
GS110-8:
Wall or utility board mountable with included mount hardware
Desktop-mountable with included feet
Kensington lock slot included
GS110-24/48:
1U Rack-mountable with included rack mount hardware
2-post front mounting options available
Desktop-mountable with included feet
Available PoE / PoE+ Power
GS110-8P
67W
GS110-24P
195W
GS110-48P
370W
Environment
Operating temperature: 32°F to 104°F (0°C to 40°C)
From offering expert advice to solving complex problems, we've got you covered. Get in touch with a Cisco Meraki Solutions Specialist today to learn more!
