Cisco Catalyst 9300 Series Switches
The foundation of
intent-based networking
The Catalyst 9300 Series is Cisco’s lead stackable enterprise switching platform, built for security, IoT, and cloud with Cisco DNA and SD-Access.
Built for the modern campus.
The Catalyst 9300 delivers the performance, security, and programmability that today’s networks demand.
Cisco DNA ready
Full support for Cisco DNA licensing with SD-Access, Catalyst Center, and ThousandEyes.
Trustworthy security
MACsec 256-bit encryption, Encrypted Traffic Analytics, and hardware Trust Anchor.
Flexible stacking
StackWise-1T (1 Tbps), StackWise-480, and StackWise-320 options across the family.
Unified management
Manage from Catalyst Center, Meraki dashboard, or CLI — your choice.
Catalyst 9300 Series Switch Families
From compact mini switches to high-performance 10G stacking, find the right Catalyst 9300 for your network.
Catalyst 9300X Copper
10G mGig copper switches with StackWise-1T
- •Data-only and 90W UPOE+ options
- •Modular 100G/40G/25G/10G uplinks
- •Stackable up to 1 Tbps

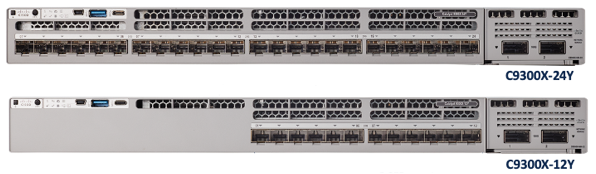

Catalyst 9300X Fiber
25G/10G/1G fiber switches with StackWise-1T
- •12 or 24 SFP28 fiber ports
- •Modular 100G/40G/25G/10G uplinks
- •Stackable up to 1 Tbps
Catalyst 9300 High-Performance
Double buffers and enhanced scale for demanding environments
- •1G/mGig with 90W UPOE+
- •Modular 1G/10G/25G/40G uplinks
- •Stackable to 480 Gbps
Catalyst 9300 90W PoE
IEEE 802.3bt UPOE+ with up to 90W per port
- •24 or 48 1G ports
- •Up to 2880W PoE budget
- •StackWise-480 with StackPower
Catalyst 9300 60W PoE
60W UPOE and multigigabit models with modular uplinks
- •1G UPOE and 10G mGig options
- •Modular 1G/10G/25G/40G uplinks
- •Stackable to 480 Gbps

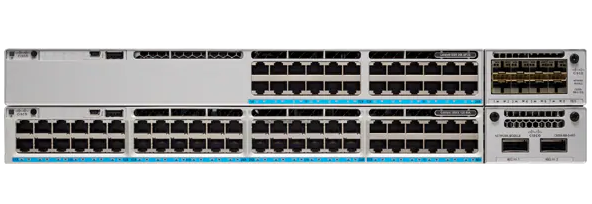

Catalyst 9300 1G
Data, PoE+, and SFP fiber with modular uplinks
- •24 or 48 ports of 1G
- •Data, PoE+, and SFP fiber options
- •Stackable to 480 Gbps
Catalyst 9300L
Fixed uplink switches for branch and campus access
- •Data, PoE+, and multigigabit options
- •Fixed 10G/25G uplinks
- •StackWise-320 up to 8 members
Catalyst 9300LM Mini
Compact enterprise switching in a shallow-depth form factor
- •4x 25G SFP28 fixed uplinks
- •Data, UPOE, and mGig options
- •StackWise-320 up to 8 members
Enterprise features across every model.
From compact mini switches to high-performance 10G stacking, every Catalyst 9300 is built on the same secure, programmable foundation.
Zero-Trust Security
MACsec encryption, Encrypted Traffic Analytics, segmentation, and Cisco TrustWorthy hardware.
SD-Access
Automated policy-based segmentation from edge to cloud with Cisco ISE and Catalyst Center.
High-Power PoE
From 30W PoE+ to 90W UPOE+, power any endpoint including Wi-Fi 6E APs and IoT devices.
Cloud Monitoring
Operational choice of Catalyst Center on-premises or Meraki cloud monitoring dashboard.
