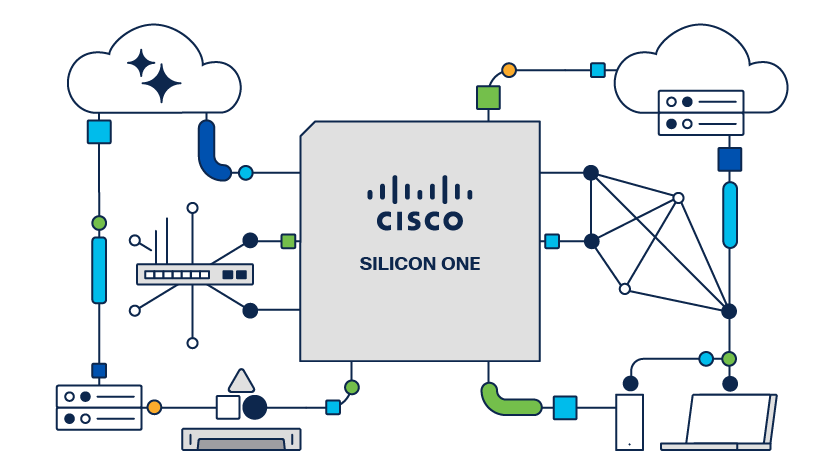

Cisco Silicon One P-Series
The P-Series and Q-Series deliver power-efficient, deep-buffer routing silicon for data center interconnect, WAN, and core routing. From the 51.2 Tbps P200 to the foundational Q100 that launched the Silicon One brand, these processors provide industry-leading AI network scale.
Product Overview
Deep Buffer Routing
Purpose-built deep buffers handle bursty traffic patterns across WAN and DCI links, ensuring reliable packet delivery.
Up to 51.2 Tbps
The P200 processor delivers 51.2 Tbps for next-generation core routing and data center interconnect.
Power Efficient
Industry-leading performance per watt reduces operational costs and environmental impact across large-scale deployments.
Scalable Architecture
Massive routing table scale with flexible forwarding pipelines support millions of routes for service provider and enterprise cores.
Security Built In
Hardware root of trust, MACsec, ACLs, and DDoS mitigation protect critical infrastructure at line rate.
One SDK
Unified development across P and Q series with SAI, SONiC, and IDE-based programmability.
P-Series Processors
Next-generation routing silicon for core and interconnect.
P200
51.2 Tbps
- Deep buffer routing ASIC
- Used in Cisco 8223
- Advanced MPLS/SRv6
P100
19.2 Tbps
- Core interconnect processor
- High route scale
- Power efficient design
Q-Series Processors
The original Silicon One routing pioneers powering Cisco 8000 and Catalyst 9000X.
Q200
12.8 Tbps
- Standard and L (Leaf) variants
- Cisco 8000/Catalyst 9000X
- Deep buffer routing
Q211
8 Tbps
- Mid-range routing
- Standard and L variants
- Flexible deployment
Q201
6.4 Tbps
- Cost-effective routing
- Standard and L variants
- Full feature set
Q202
3.2 Tbps
- Entry-level routing
- Standard and L variants
- Compact form factor
Q100
10.8 Tbps
- Launched the Silicon One brand
- Proven in production at scale
- Full routing feature set
Note: Q-Series models ending in 'L' (e.g., Q200L) are leaf/web-scale switching optimized versions with adjusted buffer sizes and table scales for specific deployments.
Specifications
P200 Processor
P100 Processor
Q-Series Range
Routing Features
Documentation
P200 Data Sheet
Cisco Silicon One P200 processor data sheet. Full specifications and features for the 51.2 Tbps flagship routing ASIC.
Download PDF ›P100 Data Sheet
Cisco Silicon One P100 processor data sheet. Specifications for the 19.2 Tbps core interconnect processor.
Download PDF ›Q200 Data Sheet
Cisco Silicon One Q200 processor data sheet. Details on the 12.8 Tbps standard and leaf routing variants.
Download PDF ›Q100 Data Sheet
Cisco Silicon One Q100 processor data sheet. The original Silicon One that launched the unified silicon architecture.
Download PDF ›Silicon One White Paper
Cisco Silicon One architecture white paper covering unified silicon strategy across routing, switching, and AI networking.
