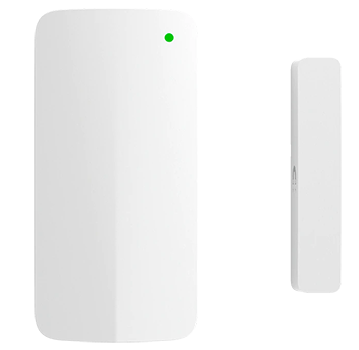

The MT20 open/close sensor detects intrusions, protecting access to critical infrastructure or assets.

Click here to jump to more pricing!
Managing security and monitoring access for physical spaces has always been an important consideration for organizations. By tracking changes in the physical environment, businesses can minimize vulnerabilities, prevent disruptions, and ensure stronger security.
The MT20, part of the Meraki MT sensor family, provides insight into access to the physical environment. Using magnetic fields to determine positioning, MT20 can detect when doors are opened or closed, allowing organizations to detect intrusions and understand usage trends.
The MT20 sensors are quick and easy to set up and can be installed on doors, gates, cabinets and more. Once powered on, MT20 sensors automatically connect via Bluetooth to Meraki MR access points or MV smart cameras, eliminating the need for a separate gateway. Powered by the Meraki platform, MT20 sensors provide real-time monitoring and alerting, allowing organizations to detect intrusions and understand access and usage trends.
Whether it’s knowing when someone enters a restricted area, keeping track of doors left ajar, or simply understanding how many individuals enter through a back entrance, the MT20 sensor provides the visibility and data to better support business decision-making across the board.
Real-time visibility and alerts give you control over your environment. Ensure optimal conditions and minimize risk with remote monitoring and flexible alerting.
Quickly provision and manage thousands of sensors to monitor temperature, humidity, leaks, and intrusion. Simply insert the batteries and add to the dashboard. MT sensors automatically connect to existing MR and MV devices. Say good-bye to on-premise servers, dedicated gateways, and management software.
Understand trends about your physical environment. Improve safety, security, and operational decision-making through a data-driven approach. Build on top of the Meraki platform using APIs or the vast ecosystem partner community and further enhance operations.
Each Meraki MT sensor features a Trust Anchor module (TAm), which securely authenticates the device and encrypts all communication with the sensor gateways. Combined with automated firmware updates, Meraki MT sensors pack a powerful security punch in a smart package.
![]()
Centralized cloud management
The Meraki dashboard provides secure monitoring and management of all your Meraki products—from MRs to MVs to MT sensors—from anywhere in the world.
![]()
Flexible alerts
Set customized thresholds for devices and receive alerts via SMS, push notifications, email, or use webhooks to connect to your platform of choice.
![]()
Automatic Bluetooth connectivity
Using 2.4 GHz Bluetooth Low Energy (BLE), sensors automatically connect to MV and MR devices in the same network.
![]()
Seamless setup and installation at scale
Wire-free installation, flexible mounting options, and automatic pairing makes it easy to provision thousands of sensors in a short amount of time.
![]()
Onboard storage
Five days of onboard storage keeps data safe in the event of an outage.
![]()
Long battery life
Field-replaceable AA batteries, with up to five years of battery life, provide one less thing to worry about.
![]()
Open API
Automate analysis outside of the dashboard, link to third-party services, and aggregate MT data with information from other business systems.
![]()
Secure and always up-to-date
Trusted Anchor module (TAm) enables a secure key to exchange data between the gateway and sensor. Automatic firmware updates keep things running smoothly.
| Open/Close sensor | |
| Intrusion detection using magnetic field via a Hall-effect sensor | |
| Wireless capabilities | |
| Bluetooth only via MV/MR as gateway | Compatible with second-generation MV smart cameras and Wi-Fi 6 MR access points |
| Operating frequency | 2.400–2.4835 GHz |
| IEEE standard | 802.15.1 (Bluetooth 4.2 Low Energy BLE) |
| Data logging | |
| Data Polling Frequency | Every 20 minutes, or immediately upon state change |
| Onboard data storage | 4,000 data points (5 days of data at the default sampling rate) |
| BLE messages encrypted and authenticated using Cisco Trust Anchor technology | |
| Power characteristics | |
| One AA battery | |
| Battery life up to five (5) years | |
| Operating environment | |
| Temperature: 0°C - 55°C (32F° - 131F°) | |
| Relative humidity: 0-95% | |
| Physical characteristics | |
| Dimensions | Main device: 81.2mm x 39.7mm x 19.5mm (length x width x height) Magnet cover: 59.5mm x 12mm x 13.35mm (length x width x height) |
| Battery compartment | |
| Multicolor, multifunction status LED | |
| General purpose button | |
| Reset button | |
| Warranty | |
| Three-year hardware warranty with advanced replacement | |
| In the box | |
| MT20-HW and magnet with cover | |
| Quick-start & installation guide | |
| AA batteries (x2) | |
| Mounting equipment | 3M tape for main device 3M tape for magnet cover Mounting screws (x4) Drywall anchors (x4) Torx allen wrench |
Download the Cisco Meraki MT20 Sensor Datasheet (PDF).
