Cisco Catalyst C9500X-28C8D Switch

Next-generation enterprise core switch built on Cisco Silicon One Q200. 28x 100G QSFP28 and 8x 400G QSFP-DD ports deliver up to 12 Tbps switching capacity with 8 Bpps forwarding for the most demanding campus networks.

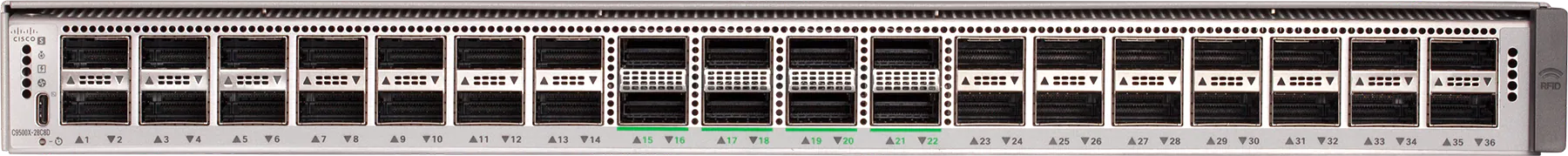

Cisco Catalyst C9500X-28C8D Switch
Silicon One Q200 12 Tbps 28x 100G 8x 400G 8 Bpps MACsec 256-bit

Product Overview

Silicon One Q200

Purpose-built on 7nm Cisco Silicon One Q200 ASIC with on-chip High-Bandwidth Memory for industry-leading performance without external memories.

12 Tbps Switching

Up to 12.8 Tbps full-duplex switching capacity with 8 Bpps forwarding performance for the most demanding enterprise core deployments.

400G Ready

8x native nonblocking 400G QSFP-DD ports plus 28x 100G QSFP28 ports for flexible high-density connectivity.

Enterprise Security

Line-rate 256-bit MACsec and WAN-MACsec encryption, Secure Boot, image signing, and Trust Anchor module built in.

High Availability

StackWise Virtual, SSO, ISSU, and graceful insertion/removal ensure zero-downtime operations for mission-critical networks.

Programmable Pipeline

P4 programmable pipeline with NETCONF/YANG, RESTCONF, and gNMI APIs for modern network automation at scale.

Features and Benefits

Purpose-built for the next-generation enterprise core.

The C9500X-28C8D delivers the industry's first 400G-capable fixed enterprise core switch with Cisco Silicon One for unmatched scale and performance.

Deep Packet Buffers

80 MB dedicated low-latency buffer plus up to 8 GB HBM for deep packet buffering in demanding enterprise environments.

SD-Access Fabric

Full SD-Access support as fabric spine, leaf, and border node with BGP EVPN VXLAN for modern campus architecture.

WAN-MACsec

Hardware-based 256-bit AES-GCM WAN-MACsec encryption for secure inter-site connectivity at line rate.

Application Hosting

Up to 960 GB SSD for container-based application hosting directly on the switch with IOx support.

Advanced Routing

Full MPLS L2/L3 VPN, BGP, OSPF, EIGRP, IS-IS, and multicast routing with up to 2 million route scale.

Cloud Management

Manage via Catalyst Center or Meraki cloud monitoring with IOS XE for flexible operational models.

Specifications

Performance

ASICCisco Silicon One Q200
Switching capacityUp to 12.8 Tbps
Forwarding rate8 Bpps
MAC addressesUp to 256,000
Routing scaleUp to 2 million routes

Ports & Interfaces

QSFP28 (40/100G)28 ports
QSFP-DD (100/200/400G)8 ports
CPUIntel 2.3 GHz x86, 8 cores
Memory32 GB DDR4
StorageUp to 960 GB SSD

Buffers

Low-latency buffer80 MB dedicated
High-Bandwidth MemoryUp to 8 GB HBM

Power

Power supplyPlatinum-rated 1500W AC/DC
RedundancyN+1 redundant, hot-swappable
Fan traysField-replaceable, reversible airflow

Security

MACsec256-bit AES-GCM line rate
WAN-MACsec256-bit AES-GCM
Secure BootYes
Trust AnchorHardware TAm

Software & Management

Operating systemCisco IOS XE
ManagementCatalyst Center, Meraki Cloud, WebUI
APIsNETCONF, RESTCONF, gNMI, YANG

Physical Dimensions

Form factor1RU fixed
Width17.5 in (44.45 cm)
Depth~21.8 in (~55.4 cm)
Total fixed ports36 (28x 100G + 8x 400G)
Breakout optionsUp to 88x 10/25G or 60x 100G

Documentation

Catalyst 9500 Series Data Sheet

Complete specifications, features, licensing, and ordering information for the Cisco Catalyst 9500 and 9500X Series switches.

Download PDF ›

Ready to deploy the C9500X-28C8D?

Our switching specialists will build a custom quote — including volume discounts, DNA licensing, and professional services.

  • Volume and multi-year pricing available
  • Cisco DNA Advantage/Premier licensing
  • Professional deployment & migration services
  • Response within one business day
