Cisco C9400-LC-48H 48-Port 1G UPOE+ Line Card

48-Port 10/100/1000 Mbps copper access line card with Cisco UPOE+ (90W per port, IEEE 802.3bt) for the Catalyst 9400 Series. Powers the most demanding PoE endpoints.

Cisco C9400-LC-48H Line Card
48-Port 1G RJ-45 UPOE+ 90W 802.3bt RFID Tag

Product Overview

48-Port RJ-45

Provides 48 ports of 10/100/1000 Mbps copper Ethernet connectivity for end-user access deployments.

Cisco UPOE+ (90W per port)

Cisco UPOE+ with IEEE 802.3bt delivers up to 90W per port, powering the most demanding devices including PTZ cameras, LED displays, and building automation.

Hot-Swappable

Field-replaceable line card can be inserted or removed without powering down the chassis, minimizing maintenance windows.

Enterprise Security

Supports MACsec encryption, Trustworthy Systems, and Encrypted Traffic Analytics for end-to-end security across the network.

Cisco DNA Ready

Fully supported by Cisco DNA Center and SD-Access for automated provisioning, policy management, and assurance.

RFID Asset Tracking

Built-in RFID tag enables automated asset management and inventory tracking across your infrastructure.

Features and Benefits

UPOE+ copper access for the Catalyst 9400 chassis.

The C9400-LC-48H delivers 48 ports of 1G copper with Cisco UPOE+ at 90W per port (802.3bt), powering the most demanding PoE endpoints.

Wire-Rate Performance

Delivers full line-rate forwarding across all ports for consistent, predictable application performance.

MACsec Encryption

Hardware-based 128/256-bit AES MACsec encryption secures data in transit across all links.

Programmable

NETCONF/YANG, RESTCONF, and streaming telemetry support for full network automation and monitoring.

Modular Scalability

Mix and match with other Catalyst 9400 line cards to build the exact port density and type your network requires.

Easy Maintenance

Hot-swappable design with front-panel LEDs for quick status monitoring and field replacement without downtime.

High Availability

Works with redundant supervisors supporting SSO, NSF, and ISSU for zero-downtime operations.

Feature & Benefit Details

Feature
Benefit
48x 1G RJ-45 UPOE+ Ports
Powers the most demanding devices with up to 90W per port via Cisco UPOE+ (IEEE 802.3bt).
Hot-Swappable Design
Insert or remove line cards without chassis reboot, reducing planned downtime to zero.
MACsec Encryption
Hardware-accelerated Layer 2 encryption protects data in motion without performance penalty.
Cisco DNA Center Support
Centralized management, automation, and assurance for simplified Day-2 operations.
SD-Access Ready
Supports Software-Defined Access for automated segmentation and consistent policy enforcement.
RFID Asset Tracking
Integrated RFID tag streamlines inventory management and asset tracking across deployments.

Specifications

Ports

Total ports48
Port typeRJ-45
Speed10/100/1000 Mbps
PoECisco UPOE+ / 802.3bt (90W/port)

Performance

Forwarding rateLine rate
Switching bandwidth96 Gbps
MACsec128/256-bit AES

Physical

Form factorSingle-slot line card
Hot-swappableYes
RFID tagYes

Compatibility

Chassis supportC9404R, C9407R, C9410R
Supervisor supportSUP-1, SUP-1XL, SUP-2, SUP-2XL
SoftwareCisco IOS XE

Ordering Information

C9400-LC-48H

48-Port 10/100/1000 Mbps UPOE+ line card

Documentation

Data Sheet

Cisco Catalyst 9400 Series Line Card Data Sheet. Full specifications, features, and ordering information.

Download PDF ›

Ready to configure your Catalyst 9400?

Our switching specialists will build a custom quote — including volume discounts, multi-year licensing, and professional services.

  • Volume and multi-year pricing available
  • Cisco Smart Net Total Care bundling
  • Professional deployment & migration services
  • Response within one business day

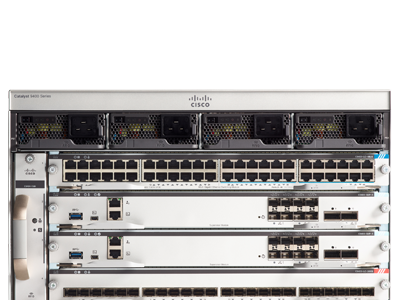

Cisco Catalyst 9400 Series
