Cisco Catalyst 8200 Series Edge uCPE
Build your secure SD-Branch

Cisco Catalyst 8200 Series Edge uCPE
Cisco Meraki Products
Cisco Catalyst 8200 Series Edge uCPE

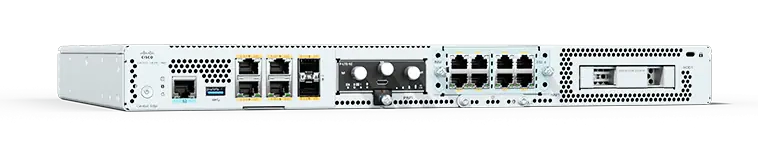

Catalyst 8200 Series Edge uCPE 8 Core Intel
#C8200-UCPE-1N8
Our Price: $3,082.22

Overview:

The Cisco Catalyst 8200 Series Edge uCPE (Universal Customer Premises Equipment) is designed for branch virtualization, allowing consolidation of network and security functions, simplified network management, and fewer truck rolls for delivery of add-on services.


Cisco® Catalyst® 8200 Series Edge uCPE is the next generation of the Cisco Enterprise Network Compute System (ENCS) 5100 Series. The platform is foundational for branch virtualization, combining routing, switching, and application hosting into a compact, One Rack-Unit (1RU) device for the small and lean virtualized branch. Cisco provides an end-to-end virtualization solution with Cisco’s own hypervisor Network Function Virtualization Infrastructure Software (NFVIS), Routing Virtual Network Functions (VNFs), and multiple orchestration choices.

With eight x86 CPU cores with hardware acceleration for IPsec crypto traffic, the Catalyst 8200 uCPE enables branches to run multiple VNFs. Along with a higher number of WAN ports, the platform includes one Network Interface Module (NIM) slot for additional WAN and LAN modules as well as a Pluggable Interface Module (PIM) slot for wireless WAN modules for LTE Advanced and LTE Advanced Pro capabilities. With support for the Cisco Managed Services Accelerator (MSX), Network Services Orchestrator (NSO), and vManage, the platform simplifies network and NFV management and orchestration for both SD-WAN and traditional deployments.

C8200-UCPE-1N8

1 rack unit, 6 x 1G WAN

Cisco SD-WAN modular router for the small and lean virtualized branch

  • 8 CPU cores
  • Up to 64 GB of DRAM
  • Up to 500-Mbps IPsec SD-WAN throughput
  • Cisco vManage, Cisco DNA Center management, programmable APIs

Reimagine your SD-Branch

Build an intelligent software-defined branch with a consolidated network, security, and compute approach.

Gain end-to-end virtualization

Get safe and flexible SD-Branch virtualization with the Cisco hypervisor network function virtualization (NFVIS) and routing virtual network functions (VNFs).

See more, solve more

Centrally manage your environment with Cisco vManage. Get actionable insights across the internet, cloud, and applications with built-in Cisco vAnalytics and Cisco ThousandEyes solutions.


Expand edge flexibility

Reach new levels of automation and transformation with support for the latest digital services and chaining.

Make the 5G move

Build a faster, more reliable network fabric with support for the latest link types.

Product highlights:


Product feature Benefits and description
Multicore processors
  • Intel® 8-core x86 CPU
  • High-performance multicore processors support high-speed WAN connections
Embedded IPsec VPN hardware acceleration
  • Up to 500 Mbps of aggregate IPsec Internet Mix (IMIX) traffic
  • Increased scalability to meet the IPsec throughput needs of small branches
  • Secure Sockets Layer (SSL) and crypto hardware acceleration
Integrated Gigabit Ethernet ports
  • Provides 4 x 1 Gigabit Ethernet Copper (RJ45) ports and 2 x 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports for WAN or LAN
DRAM
  • Supports up to 64 GB DRAM for higher scale and performance
HDD storage
  • Provides 1x 2.5-inch HDD slot for up to 4 TB SSD-SATA storage
M.2 SSD storage
  • Supports by default 32 GB M.2 USB for SD-WAN logging and additional storage on the platform
  • Can be upgraded to 600 GB or 2 TB M.2 Non-Volatile Memory Express (NVMe)
Modularity and form factor
  • 1RU form factor
  • Comes with 1 NIM slot and 1 PIM slot
Power supply
  • Ships with internal power supply
  • Power over Ethernet (PoE) options are available
  • PoE ports can be added in the NIM slot, which will need a PoE power supply
Integrated security
  • Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software

Specifications:

Model Description 1G/SFP port density 1G port density Slots Memory (DRAM) Storage (M.2 SSD) default HDD/SATA Storage
HDD/SATA Storage Cisco Catalyst 8200 Edge uCPE with 1 NIM slot and 1 PIM slot, 6 x 1 Gigabit Ethernet ports, and 8-core CPU, 2.5 in. HDD, M.2 slot 2 4 1 NIM 1 PIM Up to 64 GB 32 GB (up to 2 TB M.2 NVMe) Up to 4 TB SSD-SATA storage

Specifications:

Description Specification
Part number C8200-UCPE-1N8
Dimensions (H x W x D) 1.73 x 17.25 x 11.8 in. (4.39 x 43.82 x 29.97 cm)
Rack Units (RU) 1RU
Chassis weight 9.3 lb (4.2 kg)
Input voltage AC: 90 to 264 VAC
Operating temperature 32° to 104°F
(0° to 40°C)
Storage temperature -40° to 150°F
(-40° to 70°C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 85%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude 0 to 10,000 feet
(0 to 3050 meters)
Mean Time Between Failures (MTBF) at 25°C 671,696 hours
Safety certifications UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
IEC 60950-1
UL 62368-1
CAN/CSA-C22.2 No. 62368-1
EN 62368-1
IEC 62368-1
AS/NZS 62368.1
Class I Equipment
EMC 47 CFR Part 15
ICES-003
EN55032, CISPR32
CISPR35, EN55035
VCCI-CISPR32
CNS13438
EN 300 386
EN 55024, CISPR 24
NM EN 55032, NM EN 55024
KN32, KN35

Documentation:

Download the Cisco Catalyst 8200 Series Edge uCPE Data Sheet (PDF).
