Cisco ASR 1000 Series Aggregation Services Routers aggregate multiple WAN connections and network services, including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both hardware and software redundancy in an industry-leading high-availability design.

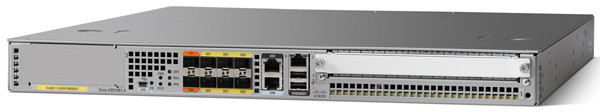

The latest addition to the Cisco ASR Family is the Cisco ASR 1001-X Router, a single-rack-unit (RU) router supporting 2.5- to 20-Gbps forwarding capacity. Cisco ASR 1001-X Router speeds can be “turned up” incrementally to as much as 20 Gbps with a simple throughput upgrade license, rather than having to purchase additional hardware blades or new routers.
The Cisco ASR 1000 Series supports Cisco IOS XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency. The Cisco ASR 1000 Series Embedded Services Processors (ESPs), which are based on Cisco QuantumFlow Processor technology, accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), deep packet inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of data center interconnect (DCI) features. These services are implemented in Cisco IOS XE Software without the need for additional hardware support.
Cisco ASR 1000 Routers sit at the edge of your enterprise data center or large office connecting to the WAN, as well as in service provider points of presence (POPs). The Cisco ASR 1000 Series will benefit the following types of customers:
The Cisco ASR 1000 Series Routers carry a modular yet integrated design, so network operators can increase their network capacity and services without a hardware upgrade. With flexibility in the number of connections, speed maximums, and price, you don’t have to under-provision or overprovision for any network location. Alternatively, you also have the option to buy an “-X” model, so you can increase throughput by simply purchasing upgrade licenses as you grow to increase your network speed dynamically.
Table summarizes the features and benefits of the Cisco ASR 1000 Series Routers.
| Features | Benefits |
|---|---|
| High Availability | |
| Redundant hardware components and power supplies |
|
| Stateful interchassis redundancy |
|
| In-Service Software Upgrade (ISSU) support | No need to schedule downtime windows; changes are made while the system keeps on working, with nonstop routing availability. |
| Cisco IOS XE Software Sub-package Mode | Ability to upgrade individual software components with reduced upgrade time. |
| Scalable Capacity and Throughput | |
| Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. |
| Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. |
| Control and forwarding-plane separation | Ability to scale control plane and data plane independent of each other. |
| Investment Protection | |
| Software modularity | Allows you to mix and match the services that best meet your business needs; no “wasted” investments on capabilities you don’t need. |
| Pay-as-you-grow licensing with “-X” models | When you need greater throughput, you simply activate it with a change in software license, rather than having to expend capital for additional hardware. |
| Cisco Shared Port Adapters (SPAs) | Allow you to reuse your investment in network I/O across platforms. |
| Cisco Network Interface Modules (NIMs) | Allow you to reuse your investment in network I/O across platforms. |
Cisco ASR 1000 Series Routers: Transform and Extend the Enterprise WAN Edge
Cisco creates a new paradigm for the WAN edge with the Cisco ASR 1000 Series Aggregation Services Routers, which offer business-critical resiliency with intelligent services flexibility to allow enterprise businesses to accelerate their growth potential.
The Cisco ASR 1000 Series Router, a critical part of the Cisco Borderless Network Architecture, is the industry's first aggregation services router and the first system within the Cisco portfolio to use the Cisco QuantumFlow Processor, a processor built for edge-based service delivery (refer to Figure 1). You can deploy the Cisco ASR 1000 Series Routers at the enterprise to provide secure WAN aggregation services; integrated threat and defense services at the WAN or Internet edge; data center interconnect (DCI) router; managed customer premises-equipment (CPE) services; or to deliver complex residential quadruple-play (data, voice, video, and mobile) or business services from the provider edge.
Meeting the requirements of the aggregation service edge required an entirely new category of network processors. Cisco has developed an innovative router engine called the Cisco QuantumFlow Processor, which is the industry's first fully integrated and programmable flow processor. The Cisco QuantumFlow Processor combines massive parallel processing, customized quality of service (QoS), advanced memory management, and integrated services programmability. With these capabilities, the Cisco ASR 1000 Series accelerates service deployment and feature velocity, resulting in reduced qualification and deployment time and lower operating expenses (OpEx).
Enterprises worldwide face several new WAN infrastructure challenges:
The Cisco ASR 1000 Series provides scalable, secure multiservice aggregation at the headquarters, and high-end branch-office and managed CPE services in remote offices. By meeting or exceeding these requirements, the Cisco ASR 1000 Series Routers are helping to define the new enterprise WAN.
Cisco Enterprise WAN Routing Portfolio
Enterprises deploying the Cisco ASR 1000 Series Routers can realize the following benefits:
Very high performance at the WAN edge to support new and faster WAN services:
Unparalleled WAN availability for consistent and reliable service delivery across the WAN:
High-performance embedded WAN edge security for attack prevention and compliance:
Improved WAN service levels and operational excellence:
A common hardware and software architecture and common components are used across the Cisco ASR 1000 Series Routers. Primary components include:
| Cisco ASR 1000 Series Enterprise Applications | ||
|---|---|---|
| Deployment Scenario | Description | System Characteristics |
| WAN edge: Guarantee high-priority applications by creating a virtual “glass ceiling” for lower-priority applications. Improve user experiences. |
|
|
| Multiservice, scalable, and secure headend: IP Security (IPsec) VPN aggregation scales to meet the new bandwidth demands of service provider IP VPNs. |
|
|
| Embedded high-speed firewall: With the Zone-Based Policy Firewall, the Cisco ASR 1000 Series acts as an implicit and complete barrier between any interfaces not members of the same zone. An explicit zone-pair policy must be specified (using Cisco Policy Language; that is, MQC) in each direction between each zone pair. The policy establishes within the router the kind of stateful inspection (Layer 4, Layer 7, or application) and session parameters to apply to each zone pairing. Example: An explicit policy allowing HTTP and Domain Name System (DNS) to traverse the Internet-DMZ zone boundary would be required. |
|
|
| Managed CPE: This implementation of branch-office architecture offers powerful investment protection with services and scale. |
|
|
| Cisco ASR 1000 Series Service Provider Applications | ||
| Deployment Scenario | Description | System Characteristics |
| Broadband L2TP Access Concentrator (LAC) or L2TP Network Server (LNS): The solution offers Layer 2 Tunneling Protocol (L2TP) endpoint-to-tunnel Point-to-Point Protocol (PPPoX) or IP sessions with bandwidth demands in the STM-1 ATM, Fast Ethernet, Gigabit Ethernet, and 10Gigabit Ethernet range. |
|
|
| Service provider edge: Layer 3 VPN (L3VPN) provider edge: Example: You can deploy the solution at the distributed provider edge or provider edge in global VPN networks for bandwidth demands such as asymmetric DSL (ADSL), T1/E1, STM-1, STM-4, Fast Ethernet, Gigabit Ethernet, etc. |
|
|
| Service provider edge: High-end route reflector: You can use the solution as a route reflector for bandwidth support of 40 Gbps. |
|
|
| Next-generation voice and multimedia example: Cisco Unified Border Element (ENT Edition): The SBC application (named Cisco Unified Border Element [ENTERPRISE Edition]) performs the voice and video gateway functions simultaneously with regular IP data services. No appliance or additional service blade is required. The control protocols and media protocols work transparently within a complex voice architecture. |
|
|
| Cisco ASR 1001-X Specifications | |
|---|---|
| Chassis Comparison and Specifications | |
| Physical specifications* | Height: 1.71 in. (43.43 mm) Width: 17.3 in. (439.42 mm) Depth: 22.50 in. (571.5mm) Weight: 25 lb (11.35 kg) Fully Loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
| Default Memory | 8-GB DRAM shared across RP, ESP, and SIP |
| Shared port adapters | 1 single-height SPA slot |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route Processor | Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
| Number of SIPs or Ethernet Line Cards Supported | Integrated in chassis |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet Ports | Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
| Built-in 10 Gigabit Ethernet Port | Yes - 2x10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note: Built-in 10GB ports cannot be reduced to 1GB speed |
| Network Interface Module | Yes |
| Integrated daughter card (IDC) |
No |
| Airflow | Front-to-back |
| Processor Module Comparison and Specifications | |
| ESP support | Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software activated feature license to 5,10, or 20Gbps |
| ESP bandwidth | 2.5 to 20 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet Line Cards | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | Yes: up to 8 Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release3.12.0 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Power Requirements | |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC Input Range (+85 to +264 VAC) Worldwide ranging DC (-40 to -72 -48V nominal) |
| Power consumption |
|
| Airflow | Front-to-back |
| Environmental Specifications | |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | 0 - 50ºC |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 - 90% |
| Storage temperature | -20 - +70ºC |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating Altitude | -500 - 10,000 feet |
| Regulatory Compliance | |
| Network Equipment Building Standards (NEBS) | N/A |
| EMC standards |
|
| Safety Standard |
|
Notes:
* Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power supply handles and cable management brackets. Refer to applicable hardware installation guide for additional detail.
Software feature licenses are required to activate services on Cisco ASR 1000 Series Routers. Currently, two types of feature licenses are available. Certain services require only a right-to-use (RTU) license, whereas other services require both an RTU license and one or more number-of-sessions licenses. All the licenses on the Cisco ASR 1000 Series are honor-based, meaning that the licenses are not enforced through a product activation or license key.
For fixed platforms Cisco ASR 1001, ASR 1001-X, and ASR 1002-X, one of the following five packages is required:
To enable a set of required features, one of the following three technology packages is required:
For modular platforms Cisco ASR 1004, ASR 1006, and ASR 1013, you can choose from six supported consolidated packages in each Cisco IOS XE Software release:
Download the Cisco ASR 1000 Series Aggregation Services Routers Datasheet (PDF).
Pricing Notes:
