RackMount Kit for Cisco Meraki MX68, MX68W, and MX68CW
RM-CI-T14-MC:
All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.
This model contains and houses an additional media converter.
The RM-CI-T14-MC gives you the ability to mount your Cisco desktop appliances in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access, as well as the console port. The power supply is fixed to prevent an accidental loss of power.
Assembly will take about 5 minutes. Simply slide your Cisco device in the kit, place the retainers, and fix the power supply to the rack.
Other colors can be delivered on a project basis.

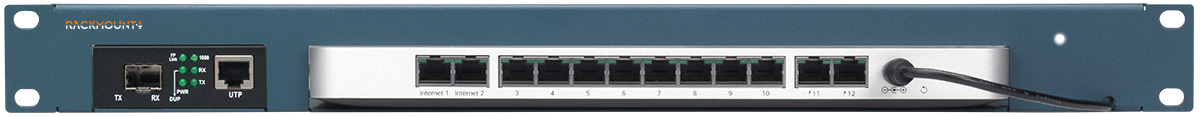

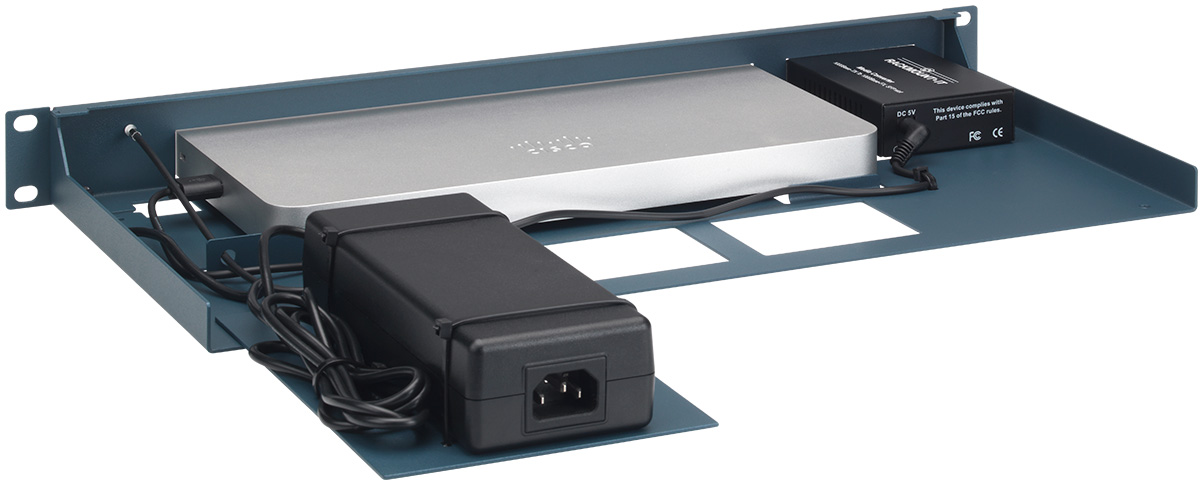

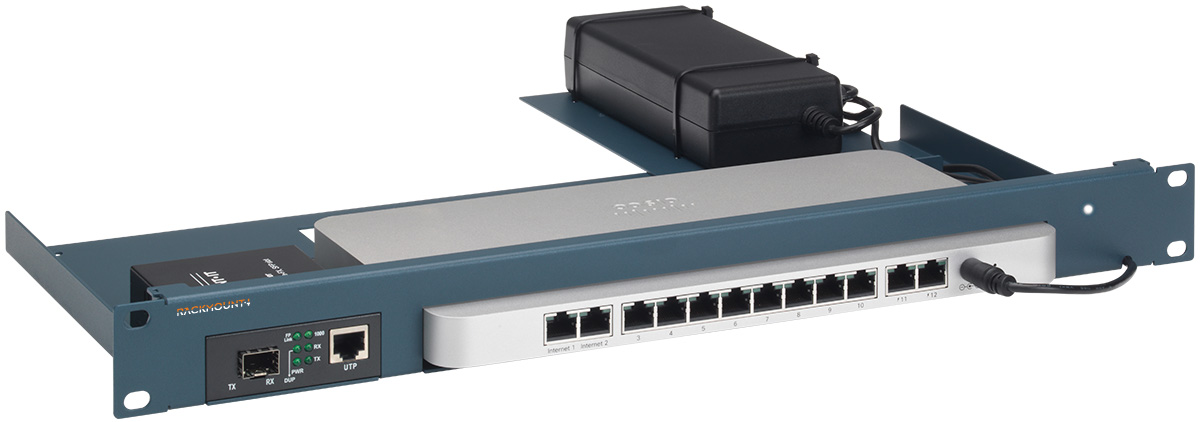

Image Views:
| Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | Cisco Meraki |
| For Use | |
| Color | Metallic Blue |
| Height | 1U |
| Dimensions (height x width x depth) |
1.73 x 18.98 x 8.54 in. (44 x 482 x 217 mm) |
| Number of connections brought to the front | 12 |
| Console port to the front | Yes |
| Cables | None |
| Couplers | None |
| What's in the box |
|
Download the RM-CI-T14-MC Datasheet (PDF).
